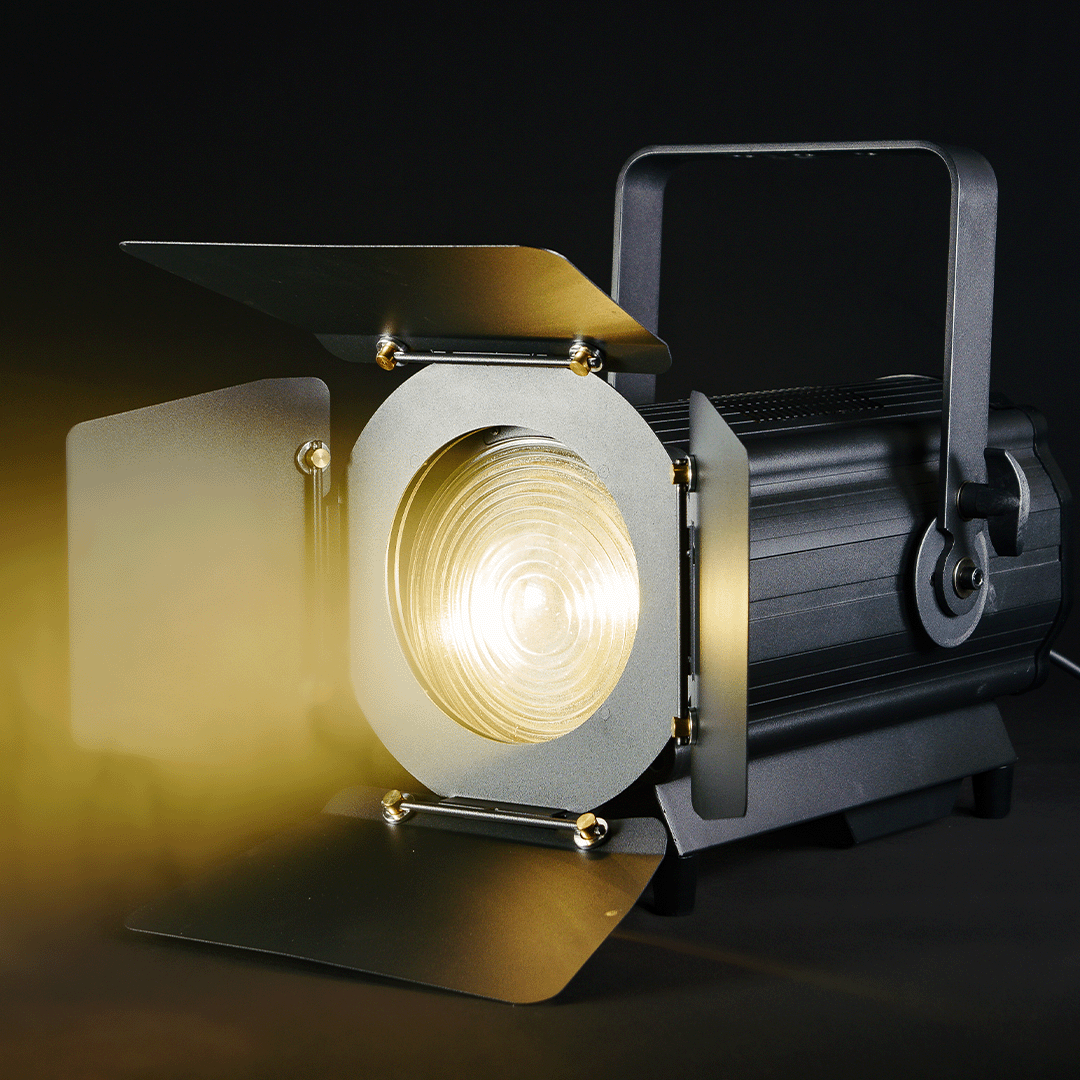

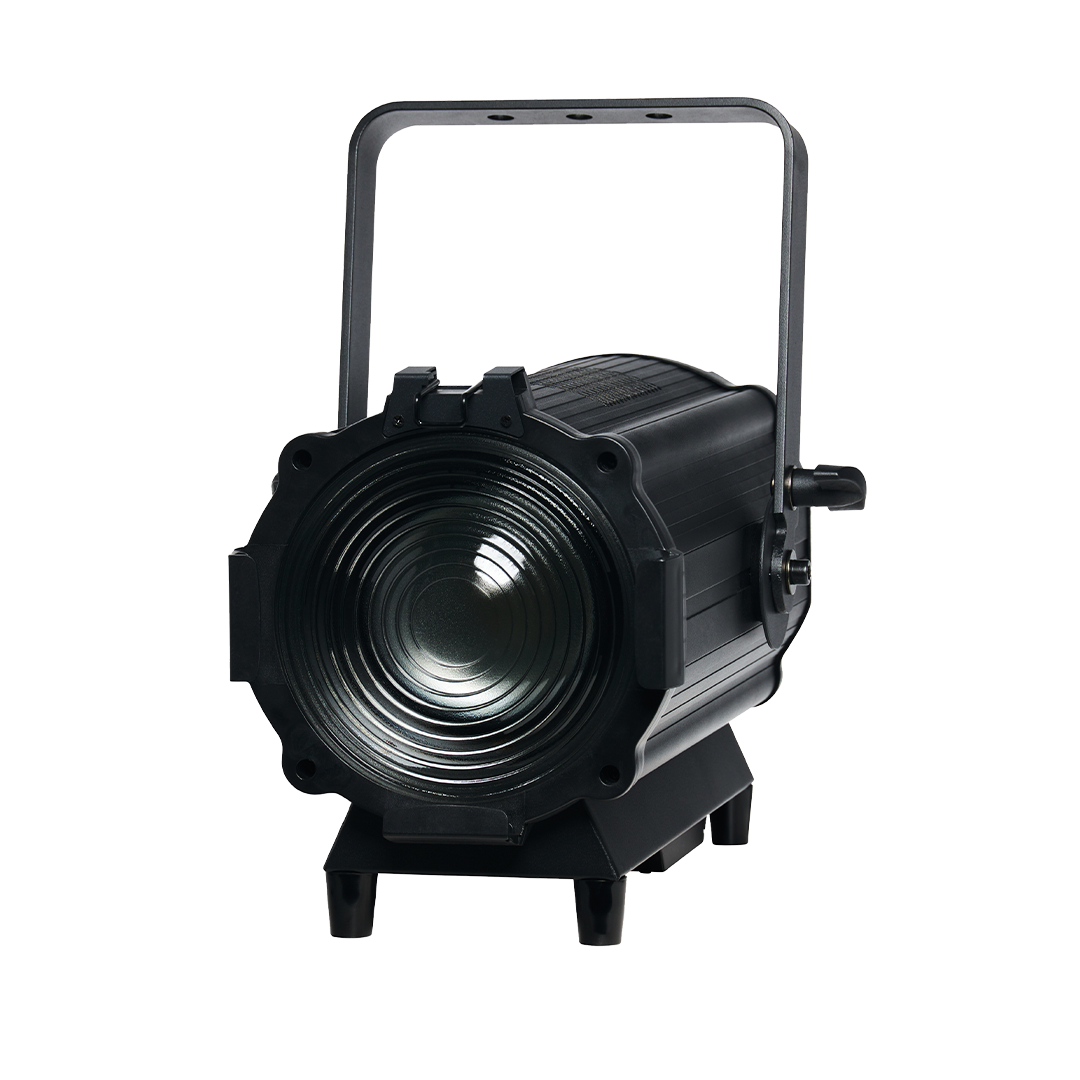

elektraLite Stingray Fresnel - Warm White

The elektraLite Stingray Fresnel brings a new look to the Fresnel world. Gone are the incandescent projector or discharge lamp problems. No more hot surfaces. The fixture has elektraLite’s exclusive “cool to touch” housing.
No more lamp changes because the color temperature changed every few hours as the lamp aged.

Using the latest LED technology the Stingray Fresnel incorporates the COB led. The COB single source led is far superior to any multi source led in terms of efficiency, brightness, durability image quality and most importantly reliability. From an application aspect the COB led allows the operator to make perfect cuts when using barn doors.

Our Fresnel uses three types of COB led. The warm white and cool white Fresnel utilize the 300 watt COB. The RGBW utilizes the 350 watt COB and the Variable White a 600 watt COB.

The RGBW 350 watt Fresnel has exceptional color rendering and like our ellipsoidal fixture, the white is at 3200K color temperature. So no need for any amber chip.

The choice of 600w for power allows the Variable White to blend perfectly with our 300w WW or CW Fresnels and our 300w WW or CW ellipsoidal fixtures.

The color temperature is always evenly displayed across the whole field with no hot spots. The dmx profile of the Variable White fixture allows the lighting designer or programmer to instantly dial up color temperatures from 3000k to 6000k in 100k increments.

Added to the feature package is an automatic electronic zoom function from 15 to 50 degrees.

The Stingray Fresnel’s rugged design and output make it ideal for use in a wide variety of public spaces including classrooms, galleries, worship spaces, event spaces, live entertainment, broadcast, and film studios.

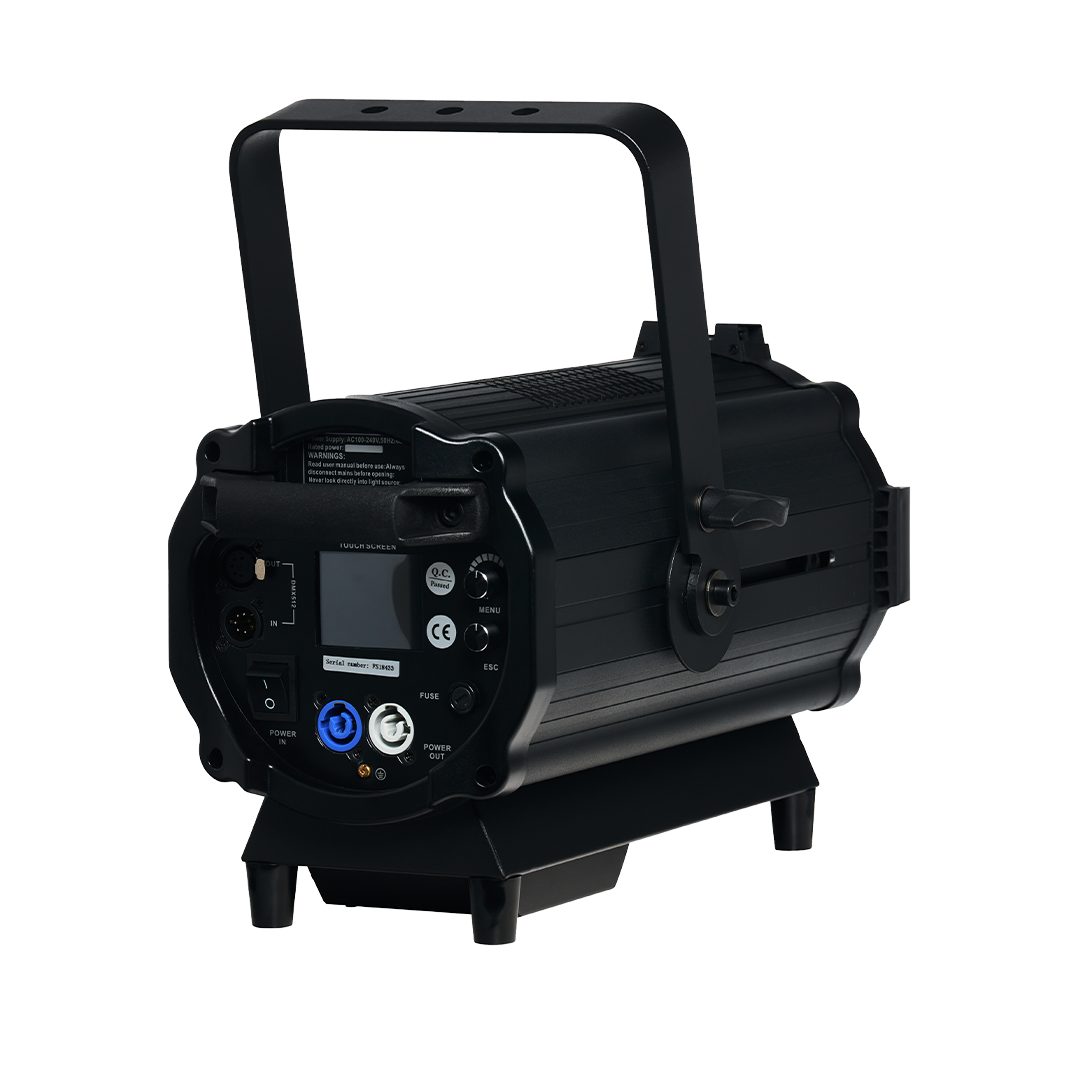

A simple to use onboard control interface allows for easy control for console-free static operation. The Stingray Fresnel has 5pin XLR connectors for both in and thru control using DMX/RDM, barn doors, a single yoke, safety eye bolt and safety cable are included. Industry standard Powercon in and out connectors allow quick connection and daisy chaining of fixtures.

Stingray Fresnel Highlights

• Single COB LED in 3 wattages: 300 watt WW/CW, 350 watt RGBW, & 600 watt VW
• 100% no step dimming and no pop at the beginning or end of the dimming curve
• Electronic zoom 15 to 50 degrees
• Easy to use display Menus for DMX/RDM or manual static control.
• On/off switch, powercon in and out, 5pin XLRs in and out.
• 4 way barn doors for perfect cuts
• New LCD touch screen
• In built push on/off rotary controls for static/manual operation of the fixture
• PWM frequency adjustment from 500Hz to 25KHz

Specifications

• Power Consumption - 550 watts (4.6 Amps @120v RMS)
• Electrical - multi-voltage; AC 100-250V – 50/60Hz
• Housing - aluminum monocoque design
• Materials - corrosion resistant hardware
• Yoke - rigid flat steel
• Light Engine - single 350W COB LED emitter RGBW
• Refresh Rate - variable
• CRI - 95
• Optics / Lensing(s) - Variable PC lensing
• Control - DMX-512 (in and thru) via 5-pin XLR

Accessories

• (1) single yoke
• (1) safety cable
• (1) 24” Edison male to Powercon female power cable
• (1) Powercon output connector (for daisy chaining)
• (1) 4-way Barn Doors
