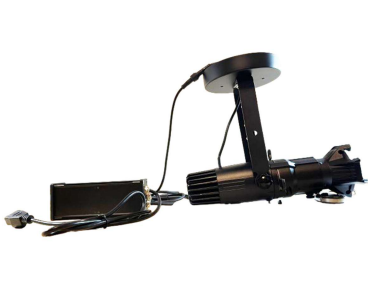

elektraLite Stingray Mini - Canopy Version - NEW

The elektraLite Stingray Mini Canopy brings clean, white
light in an incomparable level of intensity for its size.

At the heart of the Stingray Mini Canopy is a 20 watt COB
LED. The choices of COB LED are warm white (3200K), Cool
White (5600K) and tunable white (from 3000K to 6000K). A
built‐in accessory clip for a color/gel frame allows for
diffusion and color media to be used.

The Stingray Mini Canopy’s sophisticated, proprietary
diffraction lensing system provides a packed punch of light in
a variety of beam spreads. The interchangeable lens tube
give the user 26°, 36°, or 50° beam spreads. Four
independent shutter blades give perfect in‐focus cuts to the
beam.

The Stingray Mini Canopy is perfect in a wide variety of
public spaces including stages, classrooms, galleries, worship
spaces, studios, event spaces, live event, display high lighting
and production environments. It can be used equally for
ambient lighting, task lighting, accent lighting or decorative
lighting. The canopy makes for an attractive wall, floor or
ceiling fit and with this model, the power supply can be
located up to 45 feet from the fixture giving a clean look to
the fixture.

The Stingray Mini Canopy can be operated without DMX.
The fixture can be set to any output level manually and left
to operate at that level. Turning off and back on brings the
light output back to the level set.

A quick rotating and release of the barrel allows lens and
shutter to be easily cleaned. Housing features rotating
barrel assembly, pattern holder slot, and four shutter blades.

Stingray Mini Canopy Highlights

• single COB 20 watt LED with a choice of warm white
  (3200K), cool white (5600K) or tunable white (300k to
  6000K). All choices give excellent rendering with no hot
  spot.
• 0‐100% dimming using either DMX or manual control.
• Lens choices are 19°, 26°, 36° or 50° with no chromatic
  aberration. Perfect focusing.
• double slot color/gel frame holder with safety clip for
  accessories and gel frame.
• housing features rotating barrel assembly, pattern holder
  slot, and four shutter blades for perfect in‐focus beam cuts.
• DMX/power supply is remote‐mountable, up to 45’ from
  the fixture.

Specifications

• Power Consumption ‐ 25 watts (0.3A)
• Power Consumption ‐ 25 watts (0.3A)
• Housing ‐ aluminum monocoque design
• Materials ‐ corrosion resistant hardware
• Yoke ‐ rigid flat steel
• Light Engine ‐ single 20W COB LED emitter with
  choice of Warm White (3200K), Cool White
  (5600k) or Tunable White (3000K‐6000K)
• Refresh Rate ‐ variable PWM adjustable in 0.1K intervals
• Optics / Lensing(s) ‐ variable PC lensing
• Certifications ‐ ETL certified.

Accessories

• (1) single yoke
• (1) adjustable lens tube (either 19°, 26°, 36°or 50°)
• (1) 45ft extension cable for remoting the DMX/power supply
