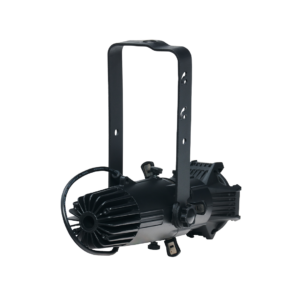

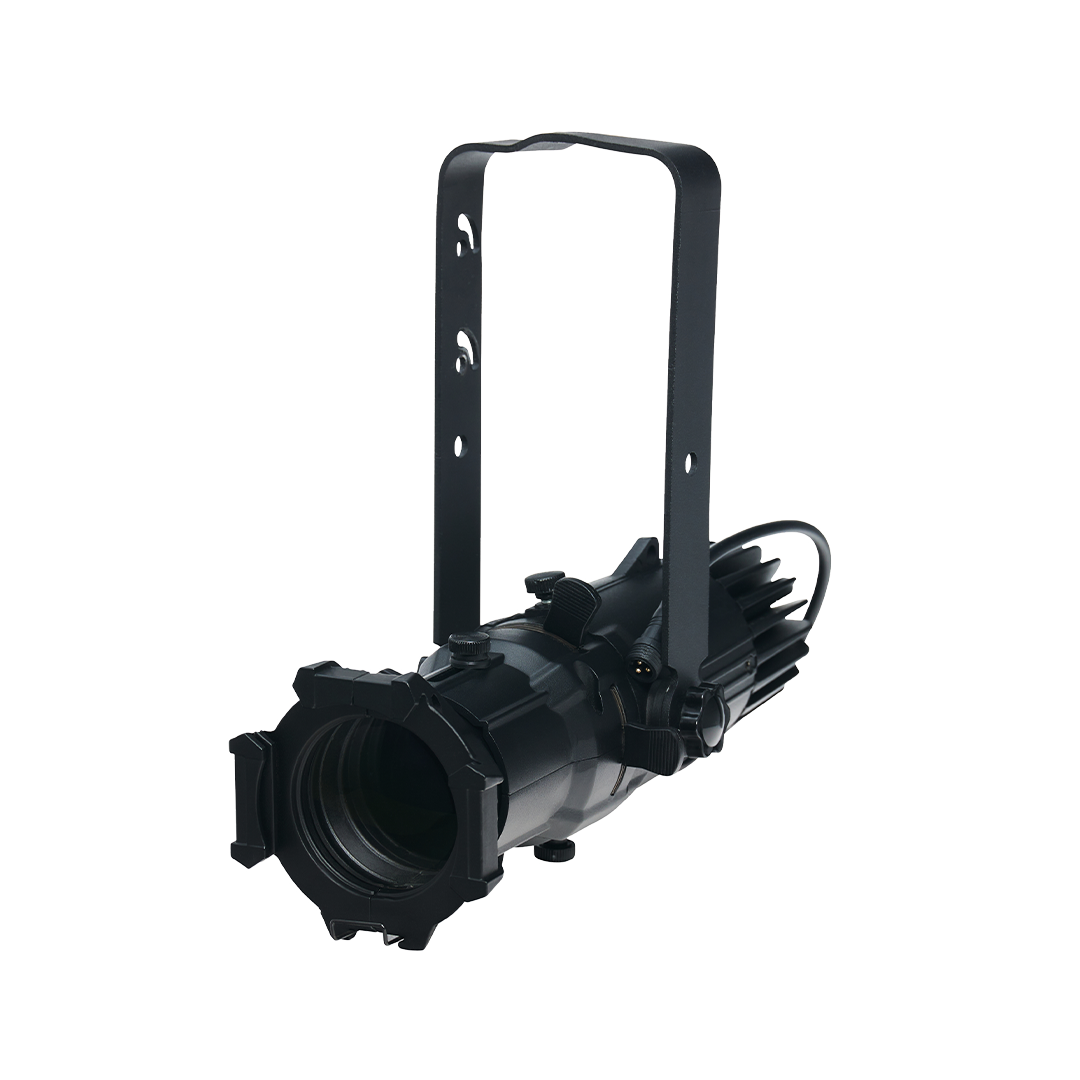

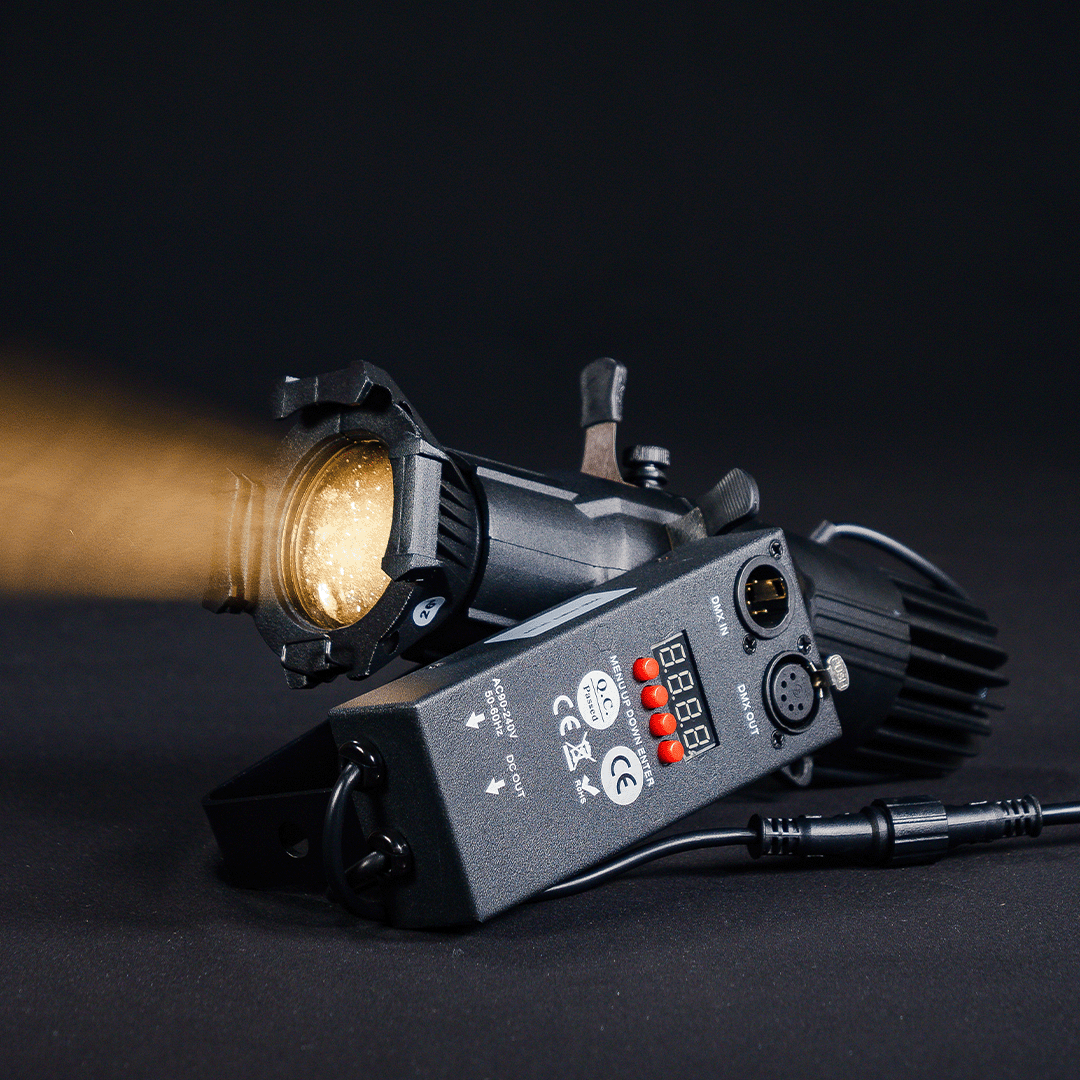

elektraLite Stingray Mini - Variable White

The elektraLite Stingray Mini brings a choice of Warm White, Cool White, and Variable White in an incomparable level of intensity for its range.

At the heart of the Stingray Mini is a newly designed 20 watt COB LED. The ellipsoidal provides clean, rich, beautiful white light making the Stingray Mini perfect for any show or event. The built-in accessory clip allows for diffusion and color media to be used. The Stingray Mini’s sophisticated, proprietary diffraction lensing system provides a packed punch of light in a variety of beam spreads. The interchangeable lens tube give the user 19°, 26°, 36°, or 50° beam spreads. Four independent shutter blades give perfect in-focus cuts to the beam.

A powerful, well‐rounded LED lighting fixture with a rugged all-metal design, the Stingray Mini is a perfect feature fixture, ready to bring rich, bright white light to a wide variety of public spaces including stages, classrooms, galleries, worship spaces, studios, event spaces, live event, and production environments.

A quick rotating and release of the barrel allows lens and shutter to be easily cleaned. Housing features rotating barrel assembly, pattern holder slot, and four shutter blades for perfect in-focus beam cuts.

Stingray Mini 20w Highlights

• Single COB 20 watt LED with three choices : 3200K (warm white), 5600K (daylight), or variable white (from 3000K to 6000k).
• 0‐100% dimming using DMX version
• Available 19, 26, 36 and 50 lens tubes with no chromatic aberration.
• Double slot gel/color frame holder with safety clip and Gobo Holder (22mm image size, 35mm gobo size) both accessories sold separately
• Housing features rotating barrel assembly, pattern holder slot, and four shutter blades for perfect in‐focus beam cuts

Specifications

• Power Consumption - 25 watts (0.3A) - maximum five fixtures per 30A circuit
• Electrical - multi-voltage; AC 100-240V – 50/60Hz
• Housing - aluminum monocoque design
• Materials - corrosion resistant hardware
• Yoke - rigid flat steel
• Light Engine - single 20W COB LED emitter
• Refresh Rate - variable
• Optics / Lensing(s) - Variable PC lensing

Accessories

• (1) single yoke
• (1) adjustable lens tube
• (1) Wireless Remote Control
