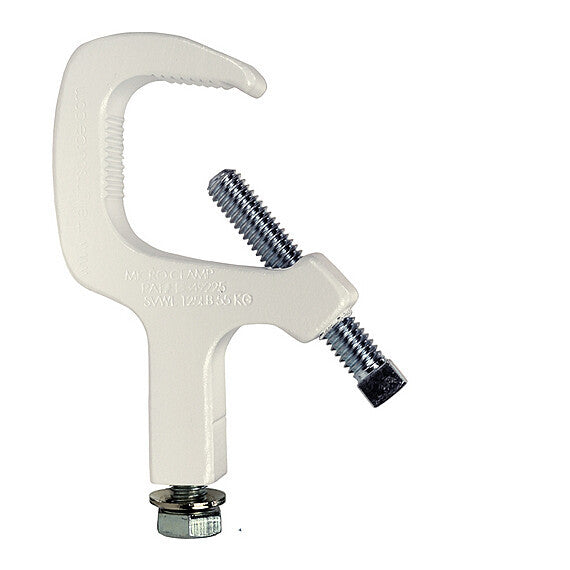

The Light Source Micro-Clamp - White Powder Coat

The Micro Clamp is ideal for hanging miniature fixtures like MR-16's onto a small pipe or tube. Made from high tensile aircraft aluminum. Solid design grips pipe with micro grooves, has spring loaded pan adjustment, and has 5/16" fasteners. Available in black anodized, or polished aluminum finishes.

• Minimum Size - 3/8" pipe, .675" OD
• Maximum Size - 1" pipe, 1.315" OD
• Working Load Limit - 125 lb 55kg
• Hardware - 5/16" x 3/4" long hex head Grade 5 Bolt 5/16" x 2" long square head case hardened set screw Belleville spring washer.
• Dimensions - 3.85" Tall x 2.5" wide x .625" thick
• Weight - 3.2 oz
