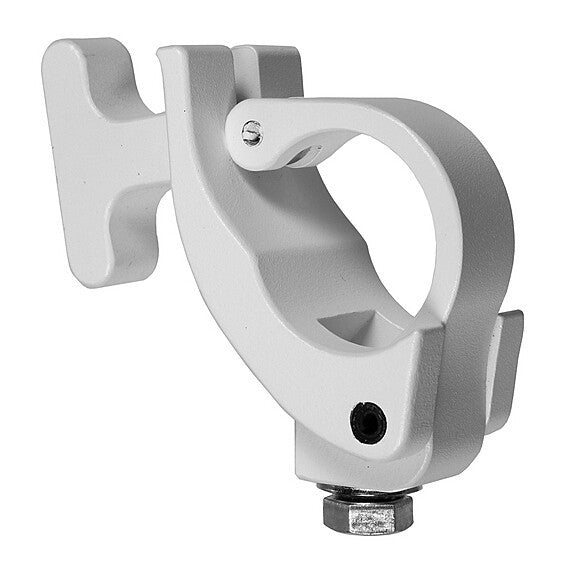

The Light Source Mini-Claw - White Powder Coat

The Mini-Claw has a lightweight profile and is used for hanging small lighting fixtures on truss or pipes.

The Mini-Claw's wrap around construction protects truss from being marred and supports the weight of the fixture as it is being secured.

Fits from (1-1/4" pipe) 1.66" OD to 2" OD truss tube. The Mini-Claw is a light duty clamp, and is not designed to side arm fixtures. The Mini-Claw has a 1/2"-13 TPI by 3/4" long hex head grade 5 bolt for fastening to the fixture.

• Minimum Size - 1.25" pipe, 1.66" OD
• Maximum Size - 1.5" pipe, 1.90" OD pipe, 2" OD truss tube
• Working Load Limit - 150 lb
• Hardware - 1/2"-13tpi by 3/4" Long Hex Head Grade 5 bolt. 1" Belleville spring washer.
• Dimensions - 3 3/8" tall x 2" thick
• Weight - 15 oz
